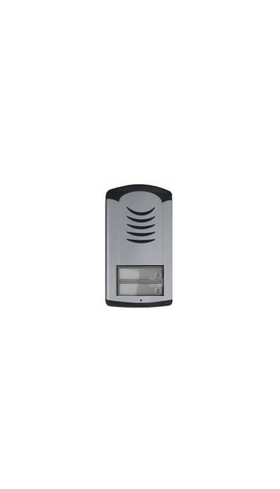

Slim IPDP 02 two buttons

493.20
(586.91 inc tax)
10 days
213202
Please sign in to buy

This product cannot be added to the
cart because you are not logged in.

Features

  • Voice communication is supplied only from telephone line
  • Two 25digit numbers (IP adress) with each button
  • Commands can be used for a doophone two or a single digit (command 55 is reduced to 5 so that we save * 5 instead of the original 55)
  • Day/night switching - automatic week program
  • Possibility of the call extension by * or #  choice
  • Possible to connect two independent locks for door opening
  • Possible use of 5 switch modes (e.g. camera, lighting, gradual opening)
  • Two codes for hanging up the doorphone from telephone
  • Two codes for door opening from telephone
  • Six code locks (password from buttons at the door)
  • two inputs for door sensors (open / close door)
  • Power supply 12V AC/DC, 500mA max or PoE technology - IEEE802.3af    Altern. A+B
  • White LED for automatic ligting for camera
  • Permanent lighting through visiting cards
  • Included color camera (autofocus)
  • Ethernet – 10/100Mb with standard 10BaseT a 100BaseTx
  • Web server for remote configuration – BOA
  • Operating system – Linux 2.6
  • USB for connection internal camera  – USB guest 1.1, software GSPCA software for video transmission to the browsers in PC – W3CAM(J-PEG, RTSP Streem) and stream H.263, H.264
  • SIP connection  P2P or PBX network system
  • WEB – firmware upgradeable
  • WEB – interface for control and setup parameters

Technical data

Features

System Requirements

A Windows desktop or Windows server OS: Windows 7/8, Windows 10, Windows Server 2008 R2 with SP1, 2012 R2, 2016 R2) IPv4/IPv6 Windows firewall

This document assumes that the Windows OS is already deployed and administrators of PortSIP PBX are allocated the administrator permission to Windows.



Hardware and Software Dependencies

OS Supported by PortSIP PBX includes:

Linux Server:

CentOS 7 or higher, 64bit; gcc/g++ 6.4 or higher

Ubuntu 16.04.4 or higher, 64bit; gcc/g++ 6.4 or higher

Debian 9.0 or higher, 64bit; gcc/g++ 6.4 or higher

Windows Desktop:

Windows 7, 8 and 10, 64-bit

Windows Server:

Windows 2008 R2 SP1, 2012 R2, 2016 R2, 64-bit

Important: The OS must be up to date.





Cloud and Virtualization Environment Supported

To build high-availability communication solution to help clients reduce cost and improve communication performance, PortSIP PBX commits support on cloud services and have confirmed availability on following cloud and virtualization environment:

  • VMware ESX 5.X and above.
  • Linux HyperV
  • Microsoft HyperV 2008 R2 and above
  • Amazon AWS
  • UCloud
  • Alibaba Cloud
  • Linode
  • Digital Ocean
  • Godaddy VPS and Cloud
  • Tencent Cloud



System performance depends on following key factors:

  • Maximum simultaneous calls needed for PBX
  • Maximum online users needed for PBX
  • Recordings for calls
  • Record audio only or both of audio, video
  • Maximum online users for audio/video conferences on PBX
  • Maximum IVR (Virtual Receptionist) on PBX
  • Maximum Call Queues on PBX
  • Maximum Ring Groups on PBX

Depending on the key features listed above, PortSIP PBX is able to run on PCs and servers with various CPSs ranging from Intel i3 CPU to Inter Xeon



Other Requirements

  • Latest Firefox, Google Chrome or Internet Explorer
  • Microsoft .NET Framework version 4.5 or higher
  • Knowledge of Linux and Linux Internet administration
  • Knowledge of Windows and Windows Internet administration
  • A constant internet connection to service.portsip.com on port 6881.
  • A constant internet connection to stun.portsip.com and stun1.portsip.com on port 3478.
  • A constant internet connection to stun4.l.google.com on port 3478.

PortSIP PBX Features

PortSIP PBX free Edition and Full Edition are equipped with same features, with the only difference that the free Edition only support up to 3 simultaneous calls only.



Features Free Edition Full Edition
Extensions Unlimited Unlimited
Number of Simultaneous Calls Supported 3 >10,000
Linux Support (CentOS, RHEL, Debian, Ubuntu) Y Y
Multi-Tenant Y Y
Call Logging Y Y
Call Forward on Busy or No Answer Y Y
Call Routing by DID Y Y
Auto Attendant / Digital Receptionist Y Y
Voicemail/ Music on Hold Y Y
Central Phonebook TBD TBD
Call Transfer Y Y
MWI – Message Waiting Indicator Y Y
Ring Extension & Mobile Simultaneously Y Y
Automatic Pickup on Busy Y Y
Supports SIP Trunks/ Gateways Y Y
Custom SMTP Server Y Y
Custom FQDN Y Y
Busy Lamp Field (BLF) Y Y
Call Reporting Y Y
Call Parking / Pickup Y Y
Call Queuing Y Y
Audio Call Recording Y Y
Video Call Recording Y Y
Intercom/ Paging Y Y
Call Recordings Management Y Y
Configure BLF’s from the Clients Y Y
Web-based Management Console Y Y
Automated Provisioning of Devices Y Y
Real Time Web-based System Status Y Y
Integrated Web Server Y Y
Easy Backup and Restore Y Y
VMware / Hyper-V Compatibility Y Y
Scheduled Backup Y Y
Scheduled Restore Y Y
Inbuilt Fail Over Functionality Y Y
Standby License Y Y
Deploy as cluster Y Y
See the Presence of Your Colleagues Y Y
Receive Voice Mail via Email Y Y
Advanced Forwarding Rules Y Y
Setting Up Conference Calls Y Y
Click2Call Y Y
View Presence of Remote Offices Y Y
Advanced Queue Strategies Y Y
Advanced Call Reporting Y Y
Real Time Queue Statistics Y Y
Ability to Use PortSIP VoIP SDK Y Y
Real Time Queue Monitoring Y Y
Call Recordings Search Y Y
Supports External Agents Y Y
Android Client (Provide rebrand/OEM) Y Y
iOS Client (Provide rebrand/OEM) Y Y
Windows Client Y Y
Mac Client Y Y
Web client Y Y
Mobile PUSH Y Y
Avoid NAT Problems Y Y
Automatic Plug & Play Phone Provisioning Y Y
Manage IP Phones Network Wide from Console Y Y
Restart Phones Remotely Y Y
Supports Popular SIP Phones Y Y
Provide Client VoIP SDK(Android, iOS, Windows, macOS) Y Y
Plugin Free – WebRTC Y Y
One-click conference Y Y
Meeting Recording Y Y
Unlimited Users Y Y
Meeting Participants Included 3 100
Full REST API Y Y
Security Y Y
E164 Number processing Y Y
